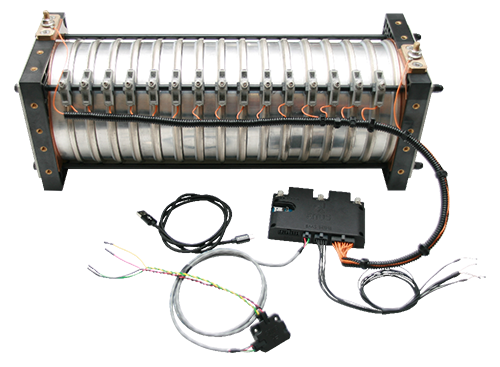

The Rolled-Ribbon Energy Cell Evaluation Kits provide a convenient way to evaluate Roll-Ribbon cells and batteries for medium-power applications. Each kit is a fully functional open-frame battery, pre-assembled in a 16S-1P configuration with the user’s selected cell model. The kit is configurable for 6 to 16 cells (18 to 48 volts).

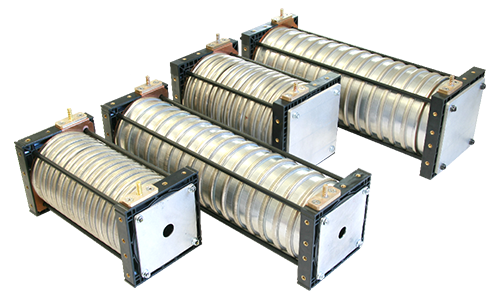

evaluation kit cellsevaluation kit

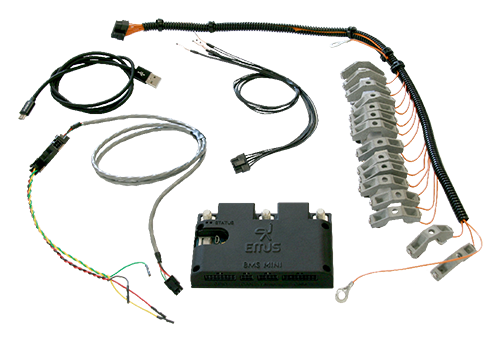

The Kit Includes:

  • 16 Rolled-Ribbon Battery Cells (selected cell model)

  • 1 16S-1P Cell-Block Configuration (selected cell model)

  • 1 EMUS BMS Mini-3 Battery Management System

  • 1 EMUS BMS Monitor Software

  • 1 BMS Temperature Sense Wire Harness (5 temperature probes)

  • 1 BMS Voltage Sense Wire Harness (17 sense wires)

  • 15 Cell Contact Clips

  • 1 USB-A to USB-Micro Cable

  • 1 CAN Network Cable (for CAN-controlled battery chargers)

  • 1 Rolled-Ribbon Cell Evaluation Kit User Manual

Applications:

  • High-Power Hybrid Drivetrains (HEV)

  • Heavy-Duty Electric Vehicles and Equipment

  • Microgrids – Grid Support Systems

    • Resilience

    • Load Shifting, Peak Shaving

  • High-Power UPS and Hybrid Power Systems

    • Standby Power, Power Bridging

    • Fuel Economizing

  • Directed Energy Weapons (HEL, RF, DPM)
