ROLLED-RIBBON®-THE NEW STANDARD FOR HIGH-POWER HIGH-CAPACITY LI-ION BATTERIES
hero products

Battery Systems

Battery Systems

hero products

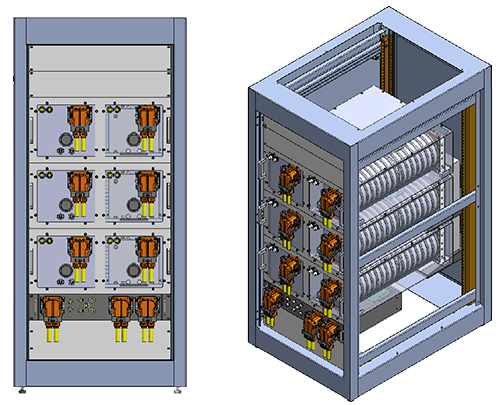

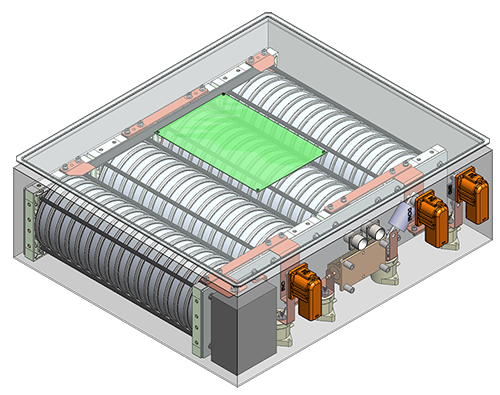

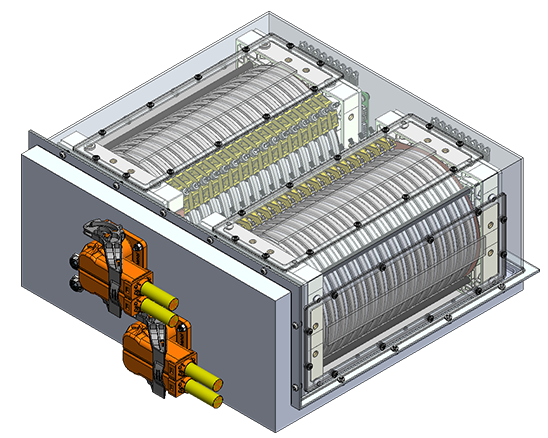

Rolled-Ribbon Battery Systems deliver superior performance and can be based on modular or monolithic reference designs. Rolled-Ribbon Battery Systems are created by combining a minimum of two system components: an enclosed energy storage element (String Module), and a System Control Module (SYSCM). Rolled-Ribbon Battery Systems are flexible, modular, and scalable for your high-power applications.

evaluation kit cells
Battery systems are comprised of:

  • String Modules

    • 4 to 96 Series-Cells/Module (12 to 308 Volts/Module)

    • 1 to 2 Parallel-Cells/Module (12 to 90 Ah/Module)

    • 4 Cells Sizes, 2 LFP Formulations

  • String Control Modules (STRCM - for multi-string batteries)

    • String Controller (STRC)

    • Current Sensor (CS)

    • Contactors, Fuse

    • Balance Charge (BC - optional)

  • System Control Modules (SYSCM - for all battery systems)

    • System Controller (SYSC)

    • Current Sensor (CS - for single-string batteries)

    • Contactors, Pre-Charge, Fuses

    • Isolation Monitors (IM - optional)

  • Thermal Management Systems (TMS - optional)

Battery systems are comprised of:

  • String Modules

    • 4 to 96 Series-Cells/Module (12 to 308 Volts/Module)

    • 1 to 2 Parallel-Cells/Module (12 to 90 Ah/Module)

    • 4 Cell Sizes, 2 LFP Formulations

  • String Control Modules (STRCM - for multi-string batteries)

    • String Controller (STRC)

    • Current Sensor (CS)

    • Contactors, Fuse

    • Balance Charge (BC - optional)

  • System Control Modules (SYSCM - for all battery systems)

    • System Controller (SYSC)

    • Current Sensor (CS - for single-string batteries)

    • Contactors, Pre-Charge, Fuses

    • Isolation Monitors (IM - optional)

  • Thermal Management Systems (TMS - optional)

evaluation kit cells
evaluation kit cells
evaluation kit cells
Battery systems
can be configured to support:

  • 1 to 8 Failsoft Battery Strings (Per System)

  • 12 to 1,200 Volts (Per String)

  • 12 to 90-Ah (Per String)

  • Up to 108-kWh (Per String)

  • 96 to 720-Ah (Per System)

  • Up to 864-kWh (Per System)

  • Up to 20C Peak C-Rate Discharge

  • Up to 10C Peak C-Rate Charge

  • Up to 17.2-MW Peak Discharge (Per System)

  • Up to 8.6-MW Peak Charge (Per System)

Applications:

  • High-Power Hybrid Drivetrains (HEV)

  • Heavy-Duty Electric Vehicles and Equipment (military, construction, industrial, utility, commercial)

  • Microgrids – Grid Support Systems

    • Resilience

    • Load Shifting, Peak Shaving

  • High-Power UPS and Hybrid Power Systems

    • Standby Power, Power Bridging

    • Fuel Economizing

  • Directed Energy Weapons (HEL, RF, DPM)
